by Saumil Shah @therealsaumil
April 2022
With the addition of MIPS, ARMX has changed its name to EMUX! Try out the Damn Vulnerable MIPS Router exercises included with the new EMUX Docker image.
A brand new Docker container running EMUX. Going ahead, all official EMUX releases shall be released as Docker images. Lightweight, Compact, Easy.
Shut up and give me the g00diez
Github: https://github.com/therealsaumil/emux
A brand new EMUX Docker image is ready for use! The old "Preview VM" is now discontinued in favour of the Docker image.
Test if Docker is working by running hello-world
docker run hello-world
Note: Ubuntu (and other Linux distros) users, ensure that your current user has privileges to run Docker as an administrator:
sudo groupadd docker
sudo gpasswd -a $USER docker
sudo usermod -aG docker $USER
git clone --depth 1 --single-branch https://github.com/therealsaumil/emux.git
cd emux
./build-emux-volume
./build-emux-docker
Note: If build-emux-docker
fails, try
and run it again by disabling DOCKER_BUILDKIT
- DOCKER_BUILDKIT=1 docker build -t $OWNERNAME/$IMAGENAME:$TAGNAME \
-f Dockerfile-emux .
+ DOCKER_BUILDKIT=0 docker build -t $OWNERNAME/$IMAGENAME:$TAGNAME \
-f Dockerfile-emux .
Open a terminal, and start the emux-docker
container:
./run-emux-docker
You will be greeted with a purple shell prompt [EMUX-DOCKER
🐳:~$]
. After a while, it is common to have many terminals
attached to the container. Coloured shell prompts makes it easy to
remember where you are.

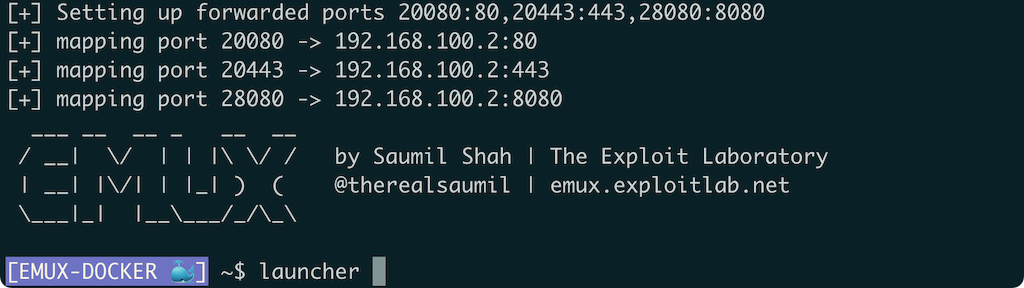

Next, start the EMUX launcher
:
[EMUX-DOCKER 🐳:~$] launcher
and select any emulated device that you wish to run.
Next, open a new terminal and attach to the running
emux-docker
container:
./emux-docker-shell
All attached container shells have a blue shell prompt. Invoke the
userspace
command to bring up the userland processes of the
emulated target:
[emux-docker shell 🐚:~$] userspace
Read the documentation for more details.
The EMUX Firmware Emulation Framework is a collection of scripts, kernels and filesystems to be used with QEMU to emulate ARM and MIPS Linux IoT devices. EMUX is aimed to facilitate IoT research by virtualising as much of the physical device as possible. It is the closest we can get to an actual IoT VM.
Devices successfully emulated with EMUX so far:
The following devices are not included with the public release, however they have been successfully emulated and used in training:
Precursors of EMUX have been used in Saumil Shah's popular ARM IoT Exploit
Laboratory training classes where students have found
four several 0-day vulnerabilities in various ARM/Linux IoT
devices.
EMUX is a collection of scripts, kernels and filesystems residing in
the /emux
directory. It uses qemu-system-arm
,
qemu-system-mips
and qemu-system-mipsel
to
boot up virtual ARM and MIPS Linux environments. The /emux
directory is exported over NFS to also make the contents available
within the QEMU guest.
The host system running qemu-system-arm|mips|mipsel
is
assigned the IP address 192.168.100.1
and the QEMU guest is
assigned 192.168.100.2
via tap0
interface.

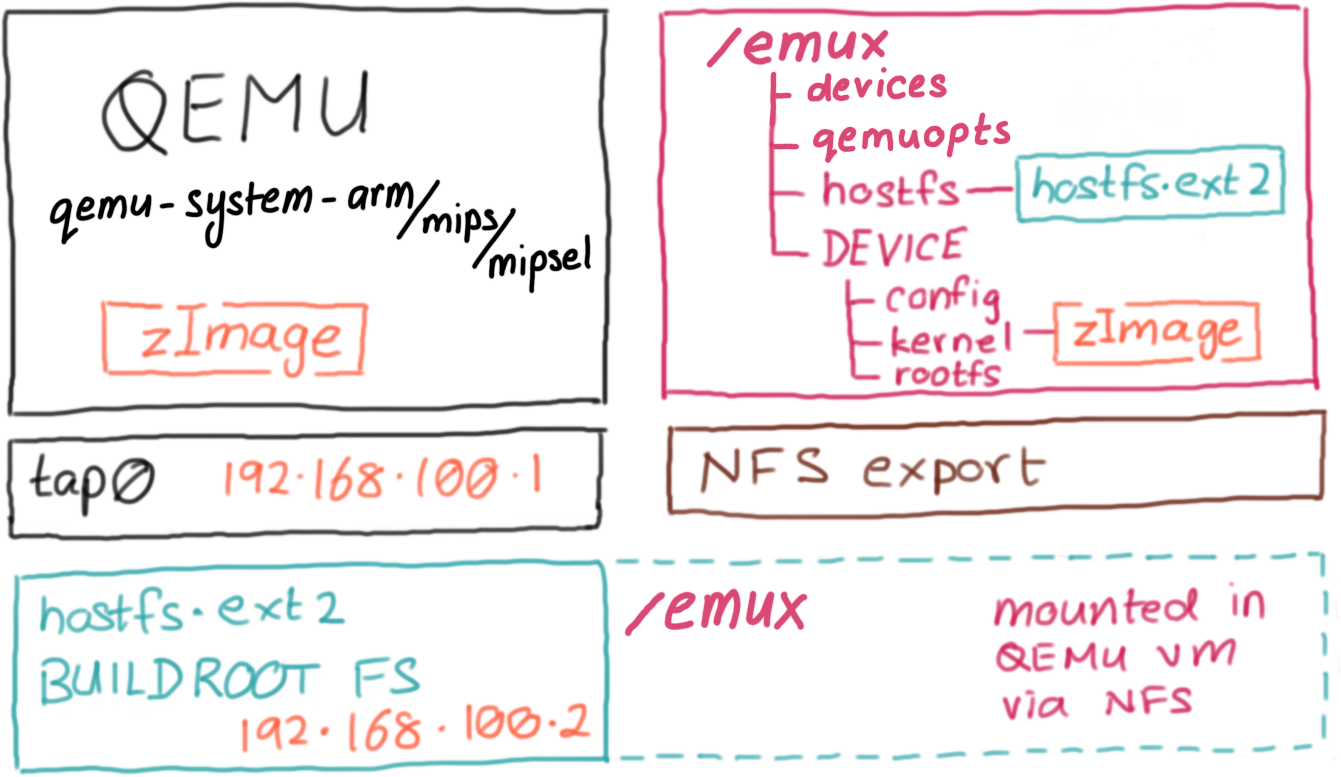

EMUX is packaged as a Docker image. The diagram below shows how the docker container is organised:
The docker image consists of:
harambe
containing the /emux
directory tree. (🦍 Harambe be praised!)emux-docker
.workspace
on the host bind mounted as
/home/r0/workspace
in the container, to share files./emux
directory tree to emulated images running under
QEMUsocat

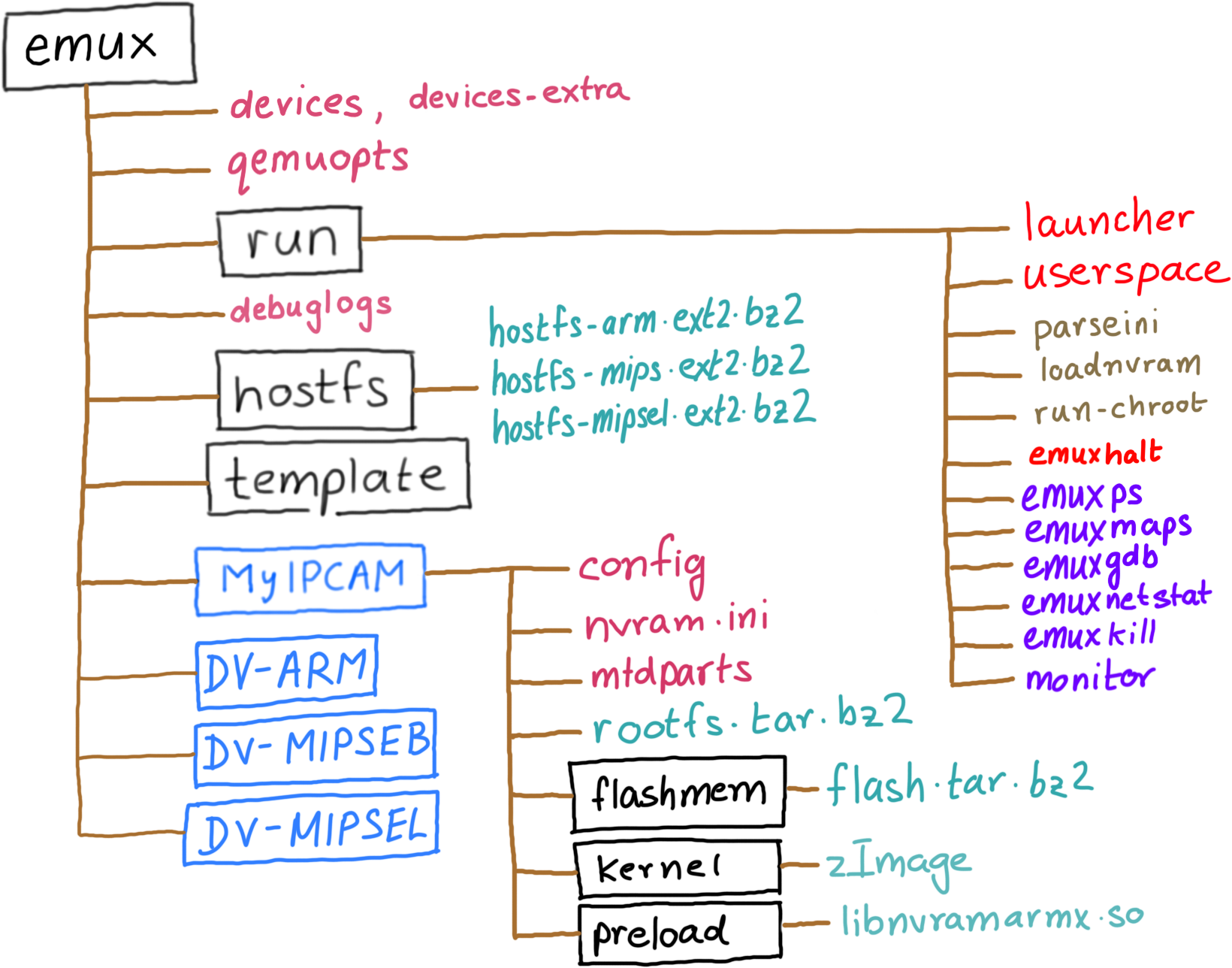

.The /emux
directory is organised as follows:
devices
: This file contains device definitions, one per
line.devices-extra
: Contains additional emulated devices not
included in the general release. It is recommended that you add your own
emulated devices to devices-extra
.qemuopts
: Abstracted QEMU options definitions for
various types of QEMU Machines.run/
: This folder contains scripts necessary to parse
the device configuration, preload nvram contents and eventually invoke
the userland processes of the device being emulated.run/launcher
: The main script. launcher
parses the devices
file and displays a menu of registered
devices. Selecting one of the devices will in turn invoke
qemu-system-arm
with the pre-defined QEMU options,
corresponding Linux kernel and extracted root file system registered
with the device.run/userspace
: Start the userspace processes of an
emulated device, once the kernel is booted up from the
launcher
.debuglogs
: If present, it indicates the location where
EMUX debugging logs will be written to. Extremely helpful in
troubleshooting while creating a new emulated device.template/
: Sample configuration and layout for a new
device. Make a copy of the template when beginning to emulate a new IoT
device.The run/
directory also contains a few commands that can
be used from the host to interact with processes running within an EMUX
emulated device.
emuxhalt
: Cleanly shut down the emulated device, and
unmount all NFS mounts. Without a clean shutdown, there's always the
risk of stale NFS handles.emuxps
: Remotely enumerate processes running within
EMUX.emuxmaps
: Remotely dump the process memory layout of a
process running within EMUX.emuxnetstat
: Enumerate network sockets within
EMUX.emuxkill
: Remotely terminate a process running within
EMUX.emuxgdb
: Attach gdb
to a process running
within EMUX.monitor
: Attach to the QEMU monitor.emuxps
, emuxmaps
and emuxgdb
are explained in detail in the Debugging With EMUX
tutorial.
Each emulated device contains the following files/directories:
config
: Contains the device's name and description,
ASLR settings, location of its root file system and commands to issue
after the kernel has booted up and transferred control to the
userland.nvram.ini
: Contents of the device's non volatile
memory, used for storing configuration settings. Contents of
nvram.ini
are preloaded into the emulated nvram before
invoking the userland init scripts.kernel/
: Contains a Linux kernel compiled (mostly via
Buildroot) to closely match the properties of the emulated device such
as kernel version, CPU support, VM_SPLIT, supported peripherals,
etc.rootfs.tar.bz2
: A compressed archive containing the
Root File System extracted from the target device. The name
rootfs.tar.bz2
is configurable from within the
config
file. EMUX will automatically unpack the Root File
System the first time it is invoked.flashmem/flash.tar.bz2
: A compressed archive containing
two 64MB memory dump files flash0.bin
and
flash1.bin
. These will be visible as a unified 128MB MTD

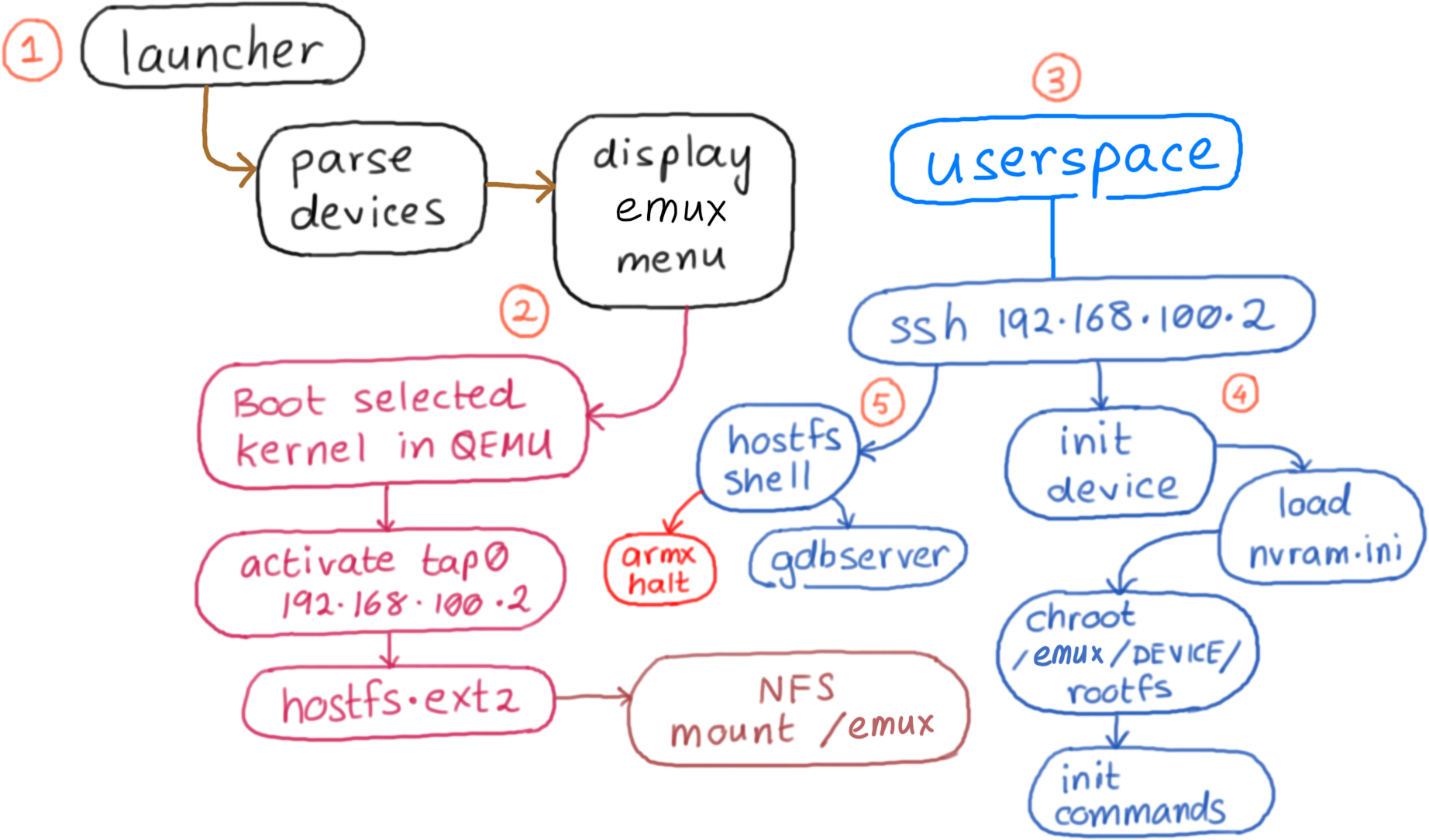

Flash device.The diagram below describes each stage of EMUX:
There are five steps in running an emulated device:
Invoke launcher
.

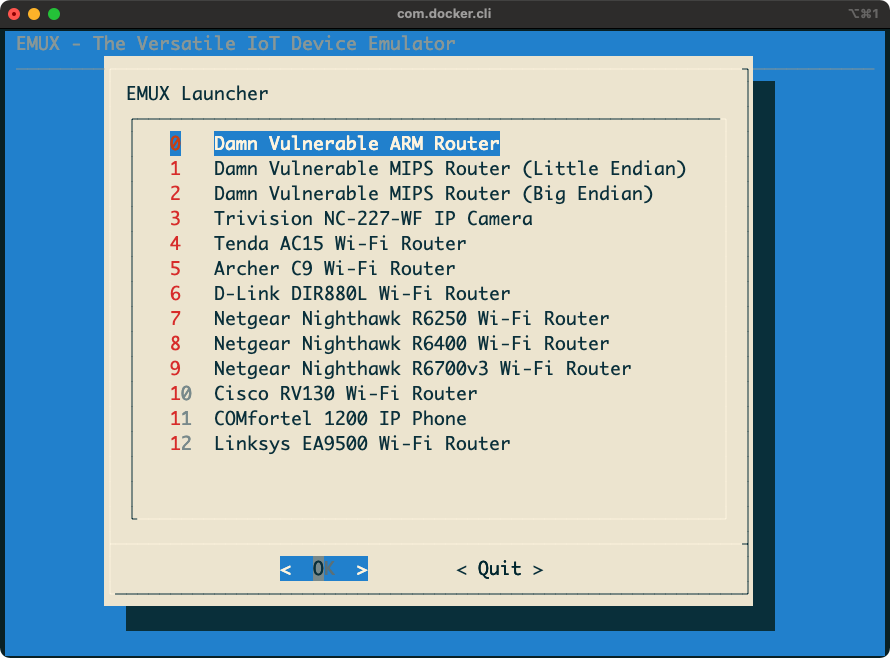

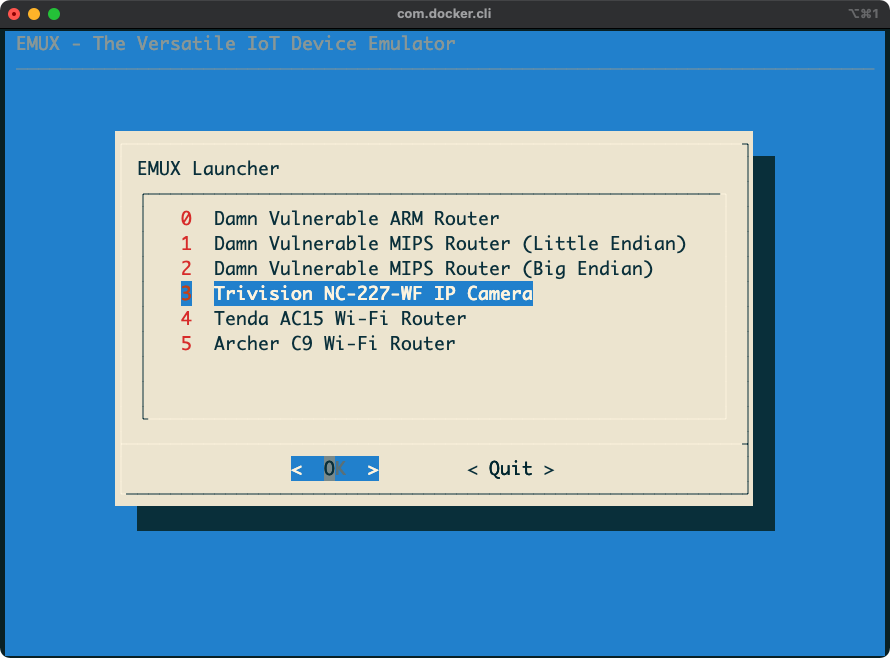

This will display a menu as shown below. In this example, we select the Trivision TRI227WF Wireless IP Camera.

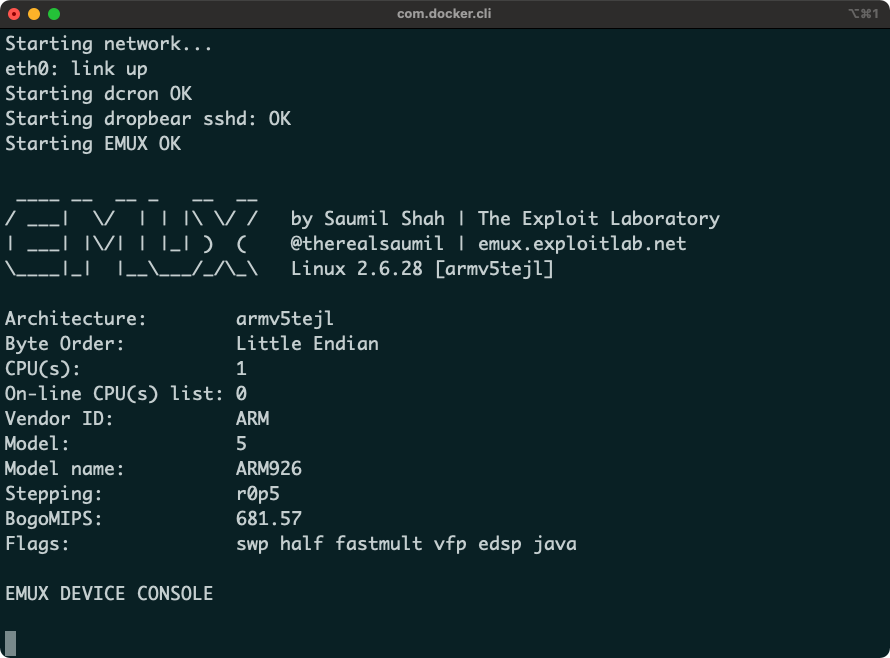

Selecting one of the devices will launch it under QEMU. The kernel
which is included in the kernel/
directory of the Trivision
IP Camera's device configuration, is booted in
qemu-system-arm
and uses a pre-built Buildroot filesystem,
which is referred to as hostfs.ext2
. Host and guest IP
addresses are assigned to 192.168.100.1
and
192.168.100.2
respectively.
hostfs-arm.ext2
, hostfs-mips.ext2
and
hostfs-mipsel.ext2
contain several scripts and tools useful
for running and dynamic analysis of the emulated device. The init
scripts in hostfs
mount the /emux
directory
over NFS. Thus, the contents of /emux
are shared by both
the host and the QEMU guest.
You will need to attach to the running emux-docker
container and invoke the userspace
command at the shell
prompt.
Internally the userspace
command simply connects to the
QEMU guest using SSH ssh root@192.168.100.2

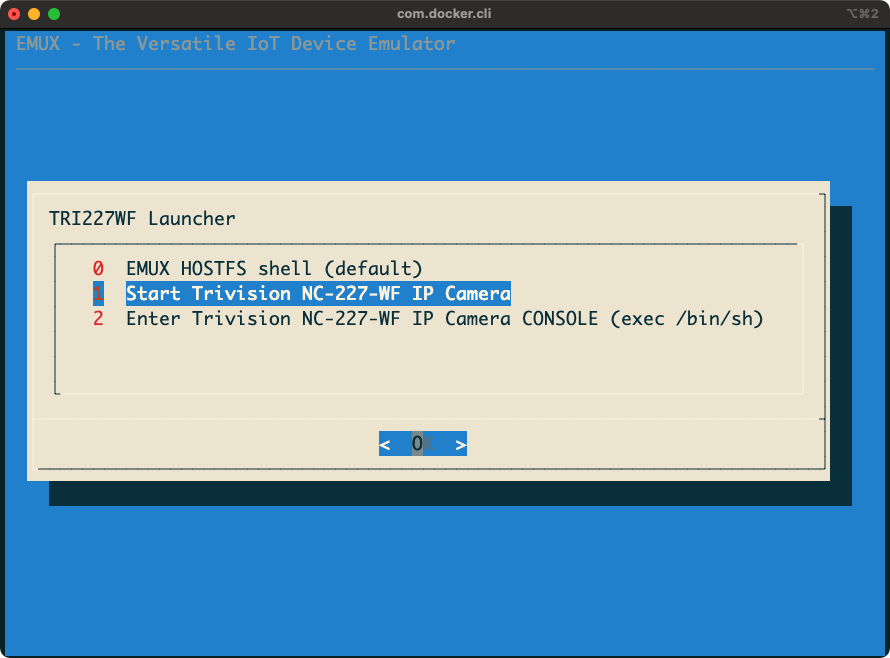

. This brings up
a menu as shown below:

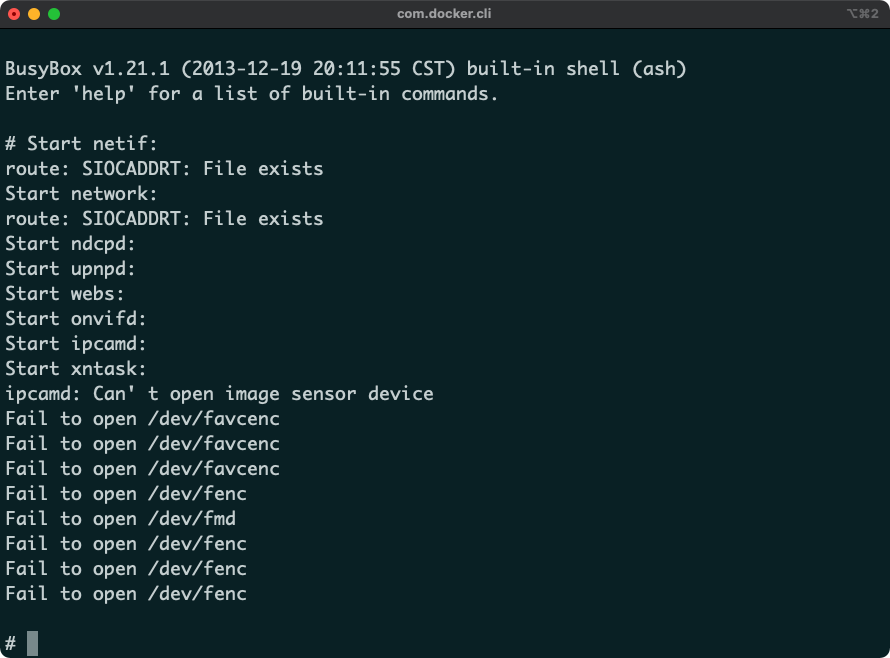

Selecting the option to launch the userspace processes of the device
results in run-init
being invoked from the corresponding
device configuration directory within /emux
. First, the
contents of nvram.ini
are loaded into the kernel's emulated
nvram driver. Next, a chroot
jail is created using the
rootfs
of the device. Lastly, the registered initialisation
commands are invoked in the newly chroot
ed
rootfs
, bringing up the device's services and init
scripts.
Once the device has fully "booted up" in EMUX, it is available for

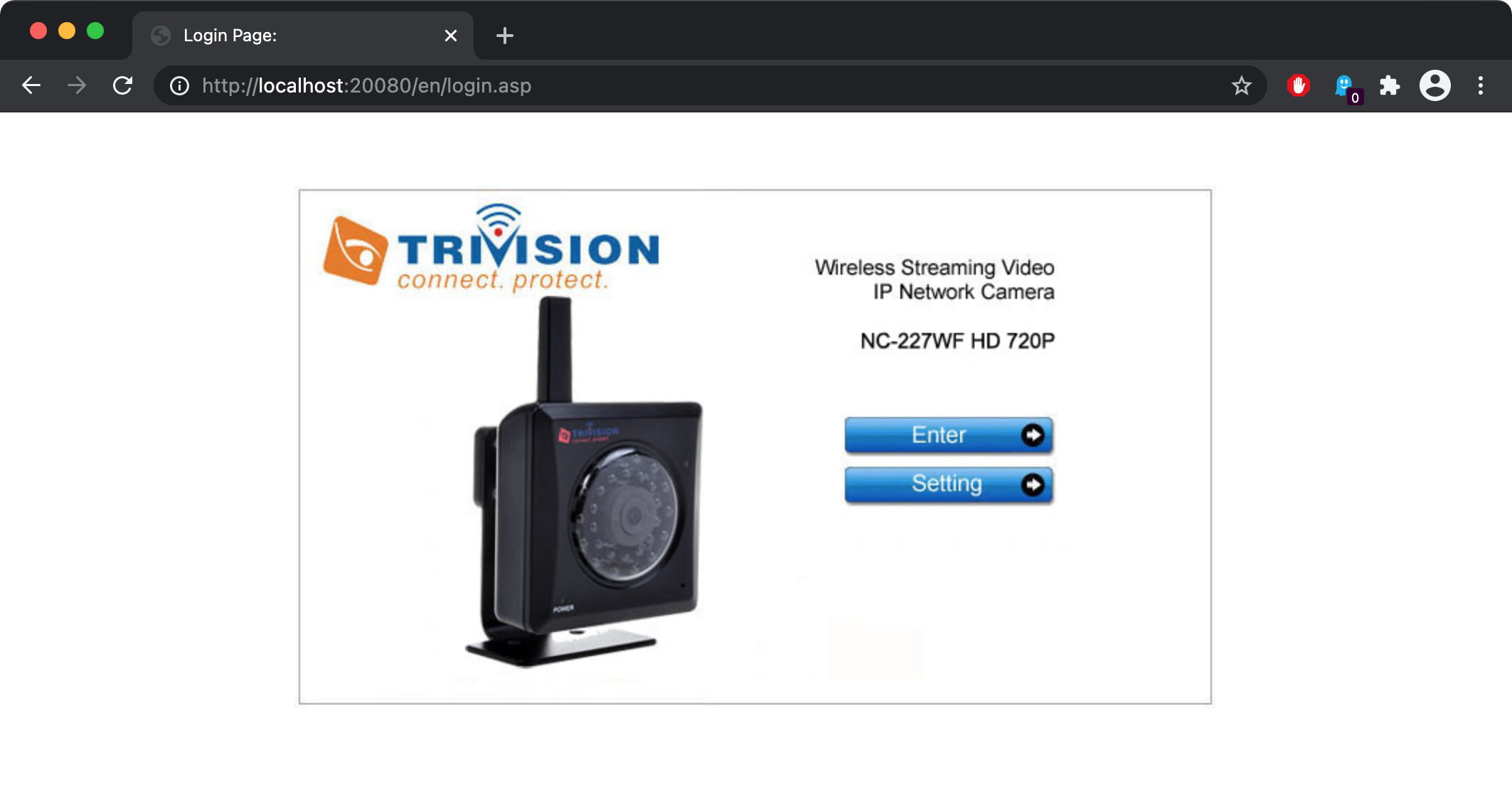

testing and analysis. The image below shows the administration interface
of the IP Camera loaded in a browser. Note, to access the internal ports
on 192.168.100.2
we will rely on port forwarding performed
by socat
. By default, the following ports are
forwarded:
localhost:20080 -> 192.168.100.2:80
localhost:20443 -> 192.168.100.2:443
localhost:28080 -> 192.168.100.2:8080
To access the web administration interface for the booted up device,
open a browser and navigate to localhost:28000
. This in
turn will forward your request to 192.168.100.2:80
inside
the emux-docker
container.
EMUX port forwarding is controlled by the PORTFWD
environment variable. It is a comma separated list containing
FORWARDED_PORT:INTERNAL_PORT
pairs. To override the default
port forwarding, simply set the contents of PORTFWD
before
invoking run-emux-docker
:
export PORTFWD="28000:8000,25800:5800"
./run-emux-docker
Before you begin to emulate an IoT device, you will need the following:

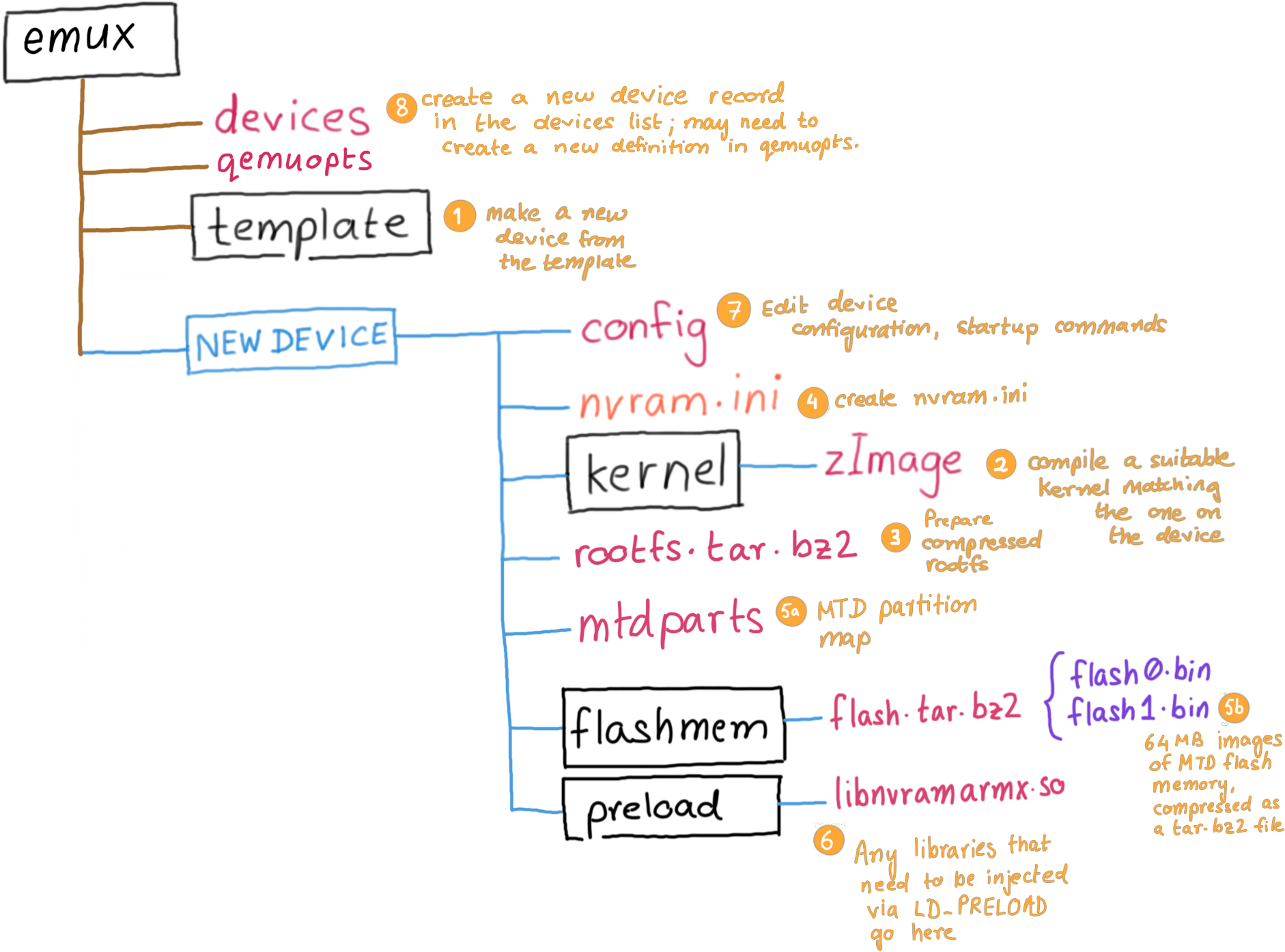

The following diagram outlines the overall process of IoT device emulation.
Steps involved:
template
directory to make a new device
configuration.kernel/
directory. You may also symlink an existing kernel
if you wish to.rootfs
from the device's firmware
into the rootfs/
directory. Typically these would be
SquashFS or CramFS filesystems, uncompressed using binwalk
or unsquashfs
or cramfsck
. Optionally you may
also create a compressed tar.bz2
archive of the root file
system.nvram.ini
flash0.bin
and
flash1.bin
and place them in the flashmem/
directory. Optionally you may also compress them in a
tar.bz2
archive. You will then need to define the MTD
partition layout to be passed to the kernel in the mtdparts
file.LD_PRELOAD
in the preload/
directory. Usually
these shared libraries contain hooked functions necessary for certain
emulated binaries to work properly.config
file with the newly populated device
firmware contents.devices-extra
file.
Pay close attention to QEMU command line options.The following sample kernels are provided with the template.
zImage-2.6.39.4-vexpress
ARMv7 CPU on a
vexpress-a9
board.zImage-2.6.31.14-realview-rv130-nothumb
ARMv6 CPU on a
realview-eb
board.zImage-2.6.31-versatile-nothumb
ARMv5 CPU on a
versatilepb
board.zImage-2.6.29.6-versatile
ARMv5 CPU on a
versatilepb
board.zImage-2.6.28-versatile-nothumb
ARMv5 CPU on a
versatilepb
board.vmlinux-3.18.109-malta-be
MIPS32 CPU (big endian) on a
malta
board. [NEW!]vmlinux-3.18.109-malta-le
MIPS32 CPU (little endian) on
a malta
board. [NEW!]However, it is encouraged to build a compatible kernel from source.
The June 2021 release of EMUX comes with a feature to enable activity
logs. This comes in very handy in troubleshooting errors when adding a
new device to EMUX. To enable logging, edit the
/emux/debuglogs
file:
# Uncomment logpath= to enable EMUX and QEMU console output logging.
# Only one logpath= should be uncommented.
#
logpath=/home/r0/workspace/logs/
#logpath=/emux/logs/
It is recommended to use /home/r0/workspace/logs
since
the workspace
directory is shared between the container and
the host.
An all new class where the ARM IoT EXPLOIT LABORATORY leaves off. The ARM IoT Firmware Laboratory dives into analysis, extraction and emulation of IoT device firmware, using a variety of techniques. Students shall be given ample hands on practice in emulating a variety of IoT devices. Lab exercises feature firmware extraction directly from the hardware, building a custom kernel and buildroot environment, extracting contents of nvram and emulating the device under EMUX. The class also goes on to fuzzing and exploit development exercises for the emulated devices.
Ringzer0 #VirtualVegas August 2021, Online Remote Training: (4 day class) https://ringzer0.training/arm-iot-exploitlab.html
The pre-built EMUX PREVIEW VM is now discontinued. You are encouraged to use EMUX on Docker
EMUX Code
EMUX is licensed under the Mozilla Public License v2.0 (MPLv2).
